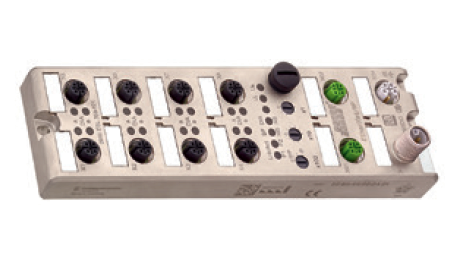

PROFINET device with 16 digital input channels, Zinc diecast housing, M12 sockets for network ports and I/O slots, M12 -D coded 4 pole LAN-Ports, 7/8" power supply, 5 poles
| Ürün Açıklaması | |||||

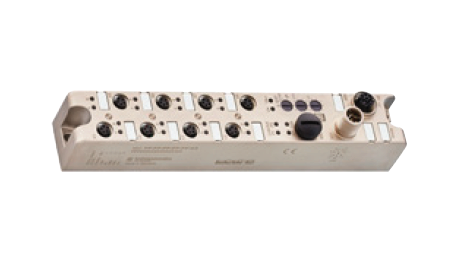

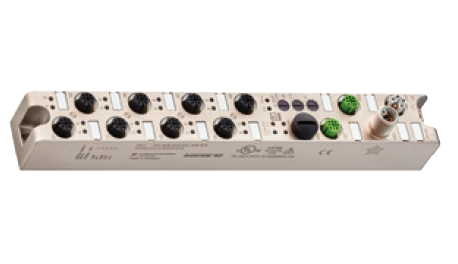

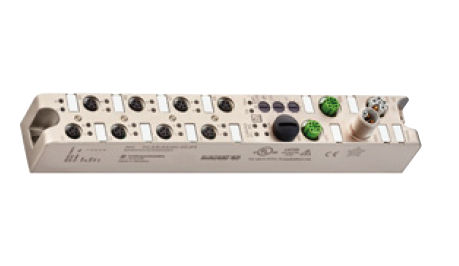

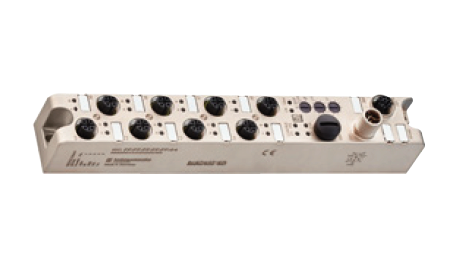

| Türü | 0980 ESL 1x9-332 | 0980 ESL 1x9-331 | 0980 ESL 1x9-122 | 0980 ESL 1x9-121 | 0980 ESL 3x9-121 |
 |
 |
 |
 |
 |
|
| Açıklama | M12 8-pole Y-coded power supply M8 5-pole I/O connectors 30 mm housing |
M12 8-pole Y-coded power supply M12 5-pole I/O connectors 30 mm housing |
M12 5-pole L-coded power supply M8 5-pole I/O connectors 30 mm housing |
M12 5-pole L-coded power supply M12 5-pole I/O connectors 30 mm housing |
M12 5-pole L-coded power supply M12 5-pole I/O connectors 60 mm housing |
| Technical Data | |||||
| Protection Degree | IP65, IP67, IP69K (only if mounted and locked in combination with Hirschmann/Lumberg connector) | ||||
| Ambient Temperature (Operation) | -20 °C to +70 °C | ||||
| Dimensions (W x H x D) | 30 x 43 x 183 (mm) | 30 x 43 x 204 (mm) | 30 x 43.1 x 204 (mm) | 30 x 43.1 x 225 (mm) | 59.6 x 30.7 x 200 (mm) |
| Weight | 413 g | 448 g | 448 g | 480 g | 500 g |
| Housing Material | Metal, Zinc Die-cast | ||||
| Bus System | |||||
| Protocol | 0980 ESL x09-xxx: PROFINET 0980 ESL x99-xxx: PROFINET & EtherNet/IP |
||||
| Connection | M12 Hybrid, 8-pole, Y-coded | M12 LAN, 4-pole, D-coded | |||
| Tranmission Rate | Fast Ethernet (100 Mbit/s), Full Duplex | ||||
| Rotary Address Switches | 0980 ESL x09-xxx: No 0980 ESL x99-xxx: Yes |
||||
| Power Supply | |||||
| Channels Number of Channels |
8 | ||||
| Connection | M8, 5-pole, B-coded | M12, 5-pole, A-coded | M8, 5-pole, B-coded | M12, 5-pole, A-coded | M12, 5-pole, A-coded |
| Number of A Ports (IOL) | 4 (X1 to X4) | ||||
| Number of B Ports (IOL) | 4 (X5 to X8) | ||||
| Nominal Voltage (IOL) | 24 V DC via US (system power supply) | ||||
| Nominal Current C/Q (Pin 4) | 500 mA | ||||
| Nominal Current L+/L- (Pin 1 and 3) | 500 mA | ||||
| Nominal Current Uaux (Pin 2, B Ports) | max. 4 A per module | max. 2 A per port | |||
| Input Channels | |||||
| Number of Channels | max. 12, 4 x (Pin 2, fixed) + 8 x (Pin 4, configurable) | ||||
| Connection | M8, 5-pole, B-coded | M12, 5-pole, A-coded | M8, 5-pole, B-coded | M12, 5-pole, A-coded | M12, 5-pole, A-coded |
| Channel Type | Type 1 acc. to IEC 61131-2 | ||||
| Nominal Voltage | 24 V DC via US (system power supply) | ||||
| Sensor Current Supply 500 | 500 mA per Port via L+/L Sensor |
||||
| Sensor Type | PNP | ||||
| Output Channels | |||||
| Number of Channels | max. 8 (Pin 4, configurable) | max. 12, 8 x (Pin 4, configurable) + 4 x (Uaux, configurable) |
|||
| Connection | M8, 5-pole, B-coded | M12, 5-pole, A-coded | M8, 5-pole, B-coded | M12, 5-pole, A-coded | M12, 5-pole, A-coded |
| Channel Type | p-switching | ||||
| Nominal Voltage | 24 V DC via Uaux (actuator power supply) | ||||
| Output Current per Channel | max. 500 mA (Pin 4) | Pin 4: max. 500 mA/ Uaux: max. 2 A |
|||
| Output Current per Module | max. 9 A | ||||
| Protective Circuit | Electronicaly: Overload protection, short-circuit protection | ||||
| Galvanically Isolated | No | Pin 4: No/ Uaux: Yes |
|||
